Quick Details

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: Voking/OEM riflescope
  • Model Number: V2404IR
  • Type: Rifle Scope
  • MODEL: V2404IR(1-6X24IR)
  • POWER: 1X-6X
  • OBJECTIVE: 24mm
  • FOV@100YDS: 30.6m-5.06m
  • EXITPUPIL: 16.0mm-4.0mm
  • EYE RELIEF: 110mm-88mm
  • 1 CLICK@100YDS: 0.5MOA
  • TUBE DIA: 30mm
  • TUBE LENGTH: 275.7mm
  • OEM order: Accepted

Packaging & Delivery

Packaging Details Voking 1-6X24IR military night vision goggles m16 rifle scopes
Cartons.Detail dimension based on the product you need.
Delivery Time within 30 workdays after the payment

Voking 1-6X24IR military night vision goggles m16 rifle scopes


Product Description

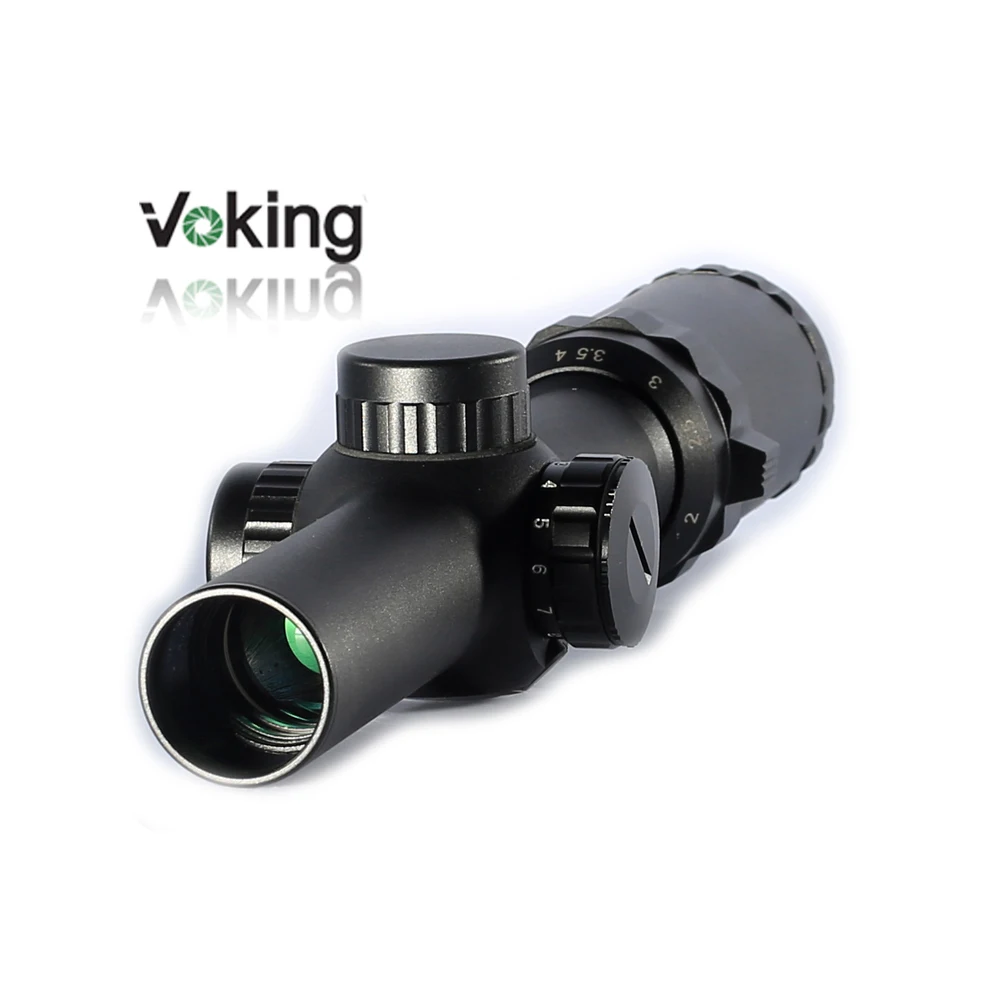

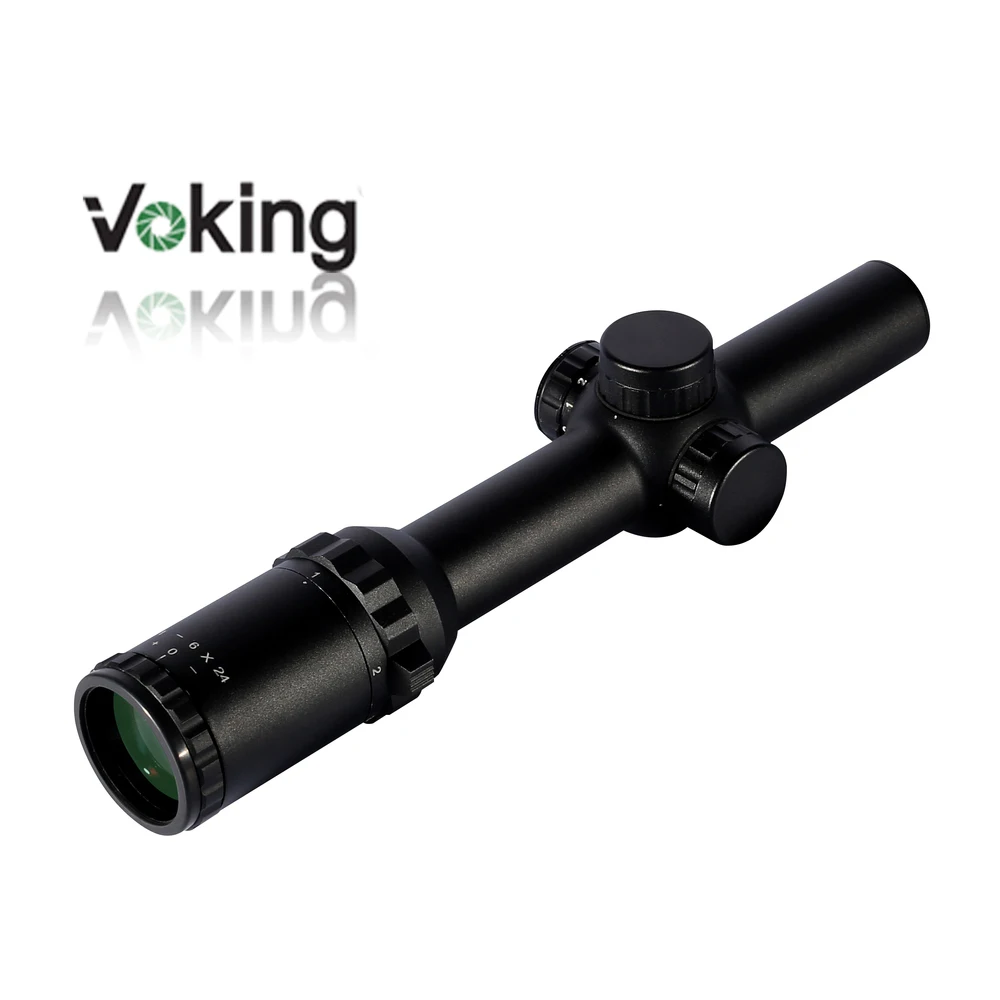

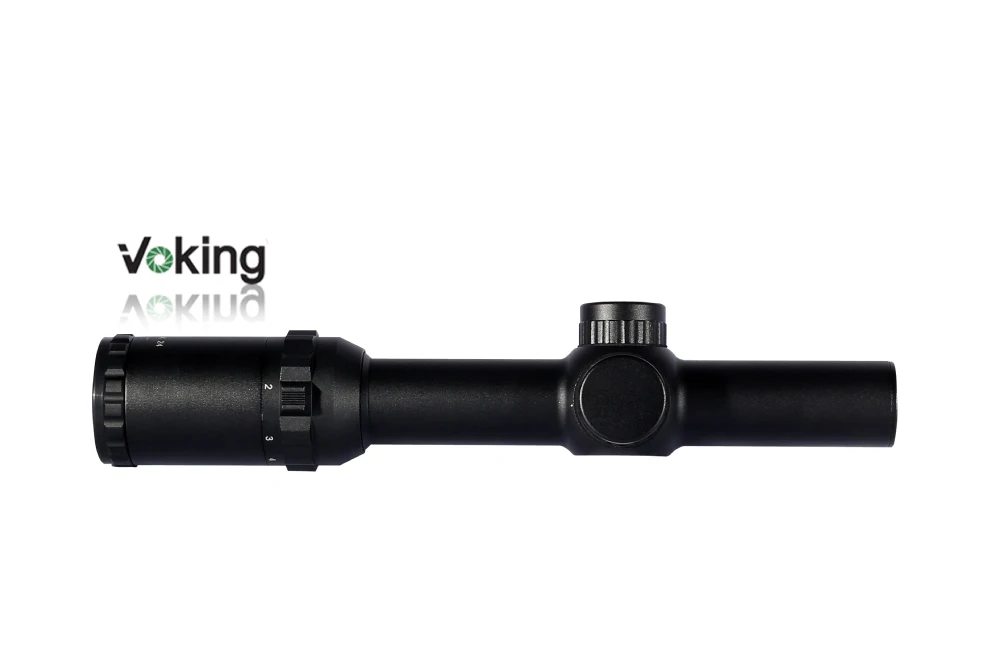

Voking 1-6X24IR military night vision goggles m16 rifle scopes

Product Advantages:

   6x zoom range.
   Matching turrets and reticles in MOA.
   Easy Focusing Knob.
   Quick focus eyepiece.
   Second focal plane illuminated glass-etched reticle.
   30mm diameter main tube with black matte finish.
  One piece, aircraft-grade aluminum alloy construction.
  O-ring seals prevents moisture, dust and debris from penetrating.
  The flip-up covers protects exterior lenses from scratches, oil and dirt.
  Nitrogen gas is purged to prevent internal fogging over a wide range of temperatures.


Voking 1-6X24IR military night vision goggles m16 rifle scopes

Technical Data

Objective Lens Diameter24mm
Color/FinishBlack Matte
Eyepiece Diameter36.5mm
Eye Relief110mm-88mm
Exit Pupil Diameter16.0mm-4.0mm
Field of View (m@100m)33.47-5.53
Field of view (ft @100yd)100.4-16.6
MOA adjustment (one click)1/2"
Diopter Adjustment+2/-3
Tube Diameter30mm
Tube PieceSingle
Parallax Setting100yds
Windage Adjustment Range90MOA
Elevation Adjustment Range90MOA
 Maximum Recoil1000G's
Lens CoatingFully Multi-coated
Number of Lenses13pcs
Lens material/typeK,ZF,BaK
Waterproof (Y / N)YES
Fogproof (Y / N)YES
Shockproof (Y / N)YES
Ocular Focus (Y / N)YES
Side Focus (Y / N)NO
Windage & Elevation Lock(Y / N)NO
Reticle R4
Reticle Type (Etched / Wire)Etched
Focal Plane2nd
Reticle ColorBlack/Red
Illuminated(Y / N)YES
Reticle Brightness Settings0-11
Battery TypeCR2032
Battery Life80-150 hours
Battery Voltage3V
Mount TypeWeaver
IP StandardIP66
Body material6061 Aluminum
Operating Temperature (°C/°F)-20 to 60 / -20 to 140
Storage Temperature (°C/°F)5 to 35 / 41 to 95
Internal Spring TypeSlice spring





Click to view more products


Packaging & Shipping


Voking 1-6X24IR military night vision goggles m16 rifle scopes

Package Contents:

1 * Filp-up covers
1 * 30mm mount rings
1 * Lense cleaning cloth
1 * User's manual
1 * Warranty card
1 * Specification Sheet
